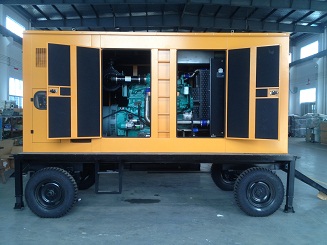

500kva cummins trailer diesel generator
发布于：2017-05-12 11:03 浏览：
| 500kva trailer cummins Diesel | COLOR | |||||||||
| Generator Set | Generator Set: | |||||||||
| Open : Green | ||||||||||
| Diesel Generator Set | Silent :Yellow,Green,Blue so on | |||||||||
| Model :KST-400GF | Control Panel:black | |||||||||
| Standby Power: 440KW | Bed : Black | |||||||||
| Prime Power:400KW | ||||||||||
| Rated Voltage:400/230 | Generator Set Size(MM) | Weight(kg) | ||||||||
| Number of Phase : 3 phase 4 wiring | Open | Silent | Open | Silent | ||||||
| Frequency: | 50Hz(1500 R.P.M) | Height: | 3400 | 4500 | 3250 | 4150 | ||||
| Width | 1250 | 2200 | ||||||||
| ENGINE | Length | 1970 | 2450 | |||||||
| Model :KTA19-G3A | ||||||||||
| Engine Type :4 Cycle , In-line ,Cummins PT Direct Injection | CONTROL PANEL | |||||||||
| Turbocharged & Aftercooled |
The control panel is the one with automatic start function, and the controller uses LCD display,optional Chinese and English display interface with operation easy and reliable. It can be widely used in all types of generator automatic control system for compact structure, advanced circuits, simple connections and high reliability. |
|||||||||
| Cooling Type: Water-cooled | ||||||||||
| Standby Power :564kw | ||||||||||
| Prime Power:503KW | ||||||||||
| BoreXstroke :159x159 | ||||||||||
| Compression Ratio:13.9:1 | ||||||||||
| Number of Cylender:6 | ||||||||||
| R.P.M:1500RPM | Control Model | |||||||||
| Governor:Electrical | HGM6120 | |||||||||
| Displacement ;19L | Control Panel Size | |||||||||
| Oil Capacity :50L | Height :0.55KG | |||||||||
| Water Capacity :30.3L | (Engine Only) | Width:186 | ||||||||
| Fuel Consumption : | 25% loads: | 22.1. | L | Length:141 | ||||||
| 50% loads: | 31.6 | L | Panel Materical:Cold rolling steel plate 2.0t | |||||||
| 75% loads: | 34.3 | L | ||||||||
| 100% loads: | 33.4 | L | Item | Alarm | Breaker | Engine Stop | ||||
| GENERATOR | Emergency Stop | o | o | o | ||||||
| Model :KST-400 | Overspeed of Engine | o | o | o | ||||||
| Standby Power :440kw | High Temp of coolant water | o | o | o | ||||||
| Prime Power 400kw | Lube Oil Pressure Low | o | o | o | ||||||
| Rated Voltage: 400/230V | Under Voltage | o | o | o | ||||||
| Number of Phase :3 | Over Voltage | o | o | o | ||||||
| Connection Type | Over Current | o | o | o | ||||||
| Frequency :50Hz | Fail to start | o | x | o | ||||||
| R.P.M :1500RPM | ||||||||||
| Number of Pole :4 | ||||||||||
| Power Factor :0.8 | ||||||||||
| Excitation :, Brushless ,Self-exciting, | ||||||||||
| AVR automatic voltage regulating | ||||||||||
| Bearing Type:Single bearing, | ||||||||||
| Protection :IP23 | ||||||||||
| Insulation Class :H | ||||||||||
