KST-S ShangChai Diesel Generator set
发布于：2017-05-18 13:28 　浏览：



一、Description

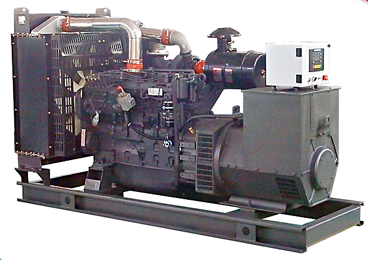

The diesel generator sets of shanghai diesel series are consist of well known brand engine, shanghai diesel engine, which are offered by shanghai diesel ltd that produces dongfeng 135 series. Among those shanghai diesel engine, the series of dongfeng 135 are widely applied, for that its easily to find the spare parts through out the world and its advanced technology, besides the series's power scope is wide that from 50kw to 300kw There are many types of the engine that four cylinders in line, six cylinders in line, and 12 cylinders in “V“ type, The shanghai diesel generators are sold well because of its reliable character, economical running and maintaince, driving power.

二、Main Specifications

Model

Prime Power

Engine Model

Cylinder No.

Bore/Stroke (mm)

Displacement (L)

Fuel Consumption
(g/kwh)
Dimension
(L*W*H)(mm)

Weight(kg)

KVA

KW

KSTS50GF

62.5

50

4135D-1

4

135/140

8

232.5

2200*760*1380

1600

KSTS64GF

80

64

4135AD

4

135/150

8.6

232.5

2200*760*1380

1800

KSTS75GF

93.7

75

6135D-3

6

135/140

8.6

229.8

2300*760*1380

2100

KSTS90GF

112.5

90

6135D-3

6

135/140

8.6

229.8

2300*760*1380

2100

KSTS100GF

125

100

6135AD-3

6

135/150

8.6

226

2300*760*1400

2200

KSTS120GF

150

120

6135AZD-1

6

135/150

12.9

225.7

2700*880*1640

2300

KSTS150GF

187.5

150

6135AZD-1

6

135/150

12.9

225.7

2700*880*1640

2300

KSTS200GF

250

200

G128ZLD

6

135/150

12.9

225

2900*1130*1800

2600

KSTS200GF

250

200

G128ZLD2

6

135/150

12.9

225

2900*1130*1800

2700

KSTS250GF

312.5

250

G128ZLD1

6

13/150

12.9

225

3100*1290*1800

3000

KSTS250GF

312.5

300

G128ZLD11

6

135/150

12.9

225

3100*1290*1800

3100

KSTS300GF

375

300

G128ZLD11

6

135/150

12.9

225

3100*1290*1800

3200

KSTS300GF

375

300

12V135AZD

12

135/150

25.8

229.8

3100*1350*1850

3700

KSTS350GF

437.5

350

12V135AZLD

12

135/150

25.8

232.6

3200*1450*1900

4200

KSTS400GF

500

400

12V135BZLD

12

135/155

26.6

210

3300*1550*1900

4800

KSTS450GF

562.5

450

12V135BZLD2

12

135/155

26.6

210

3400*1550*1900

4900

KSTS500GF

625

500

12V135BZLD1

12

135/155

26.6

210

3400*1550*1900

4900
Note:
1. Above that technical specifications are all 50Hz,rated voltage is 400/230V,the power factor is 0.8(lag),and the connecting type is 3 phase and 4 wire. The 60Hz diesel generator sets can be supplied according to the customers' requirements.
2. As the alternator, we can use the famous brand such as KAIJIELI, STAMFORD, LEROY SOMER, MARATHON etc. according to the customers’ requirements.
3. Specifications may change without notice.
